Key features/benefits
This type is designed and produced for pipelines. It should be preferred for On-Off services. Emergency Shutdown, Line Break and Remote Control types provide sound operation of the line. They are manufactured with a full bore section equals to pipeline cross section. Opening without decreasing the differential pressure is not recommended.

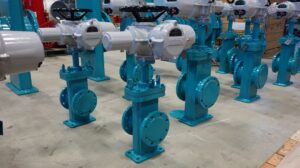

These Gate Valves are designed as pipeline valves and have piggable feature. Disc is designed as one-piece slab and the rings are floating type.
Features
Bolted Bonnet (BB)
Outside Screwed & Yoke (OSY)
Rising Stem (RS)
Double Block & Bleed (DBB)
Anti Static Device (ASD)
Fire Safe Design (FSD)
Above Ground (AG) & Underground (UG)
Full Bore(FB)
Drain & Vent Connection
Injection Sealant (optional)
Standards
» Design API 6D, ISO 10434, ASME B16.34
» Face to Face size ASME B16.10
» End Type ASME B16.5 & B16.47 RF/ RTJ (Series A, Optional Series B), ASME B16.25 BW
» NACE MR0175, MR0103 (optional)
» Fire safe valve design, according to API 607 and ISO 10497 standards.
» Test Standard API 598
Operators
» Manual Operated (Handwheel or Gearbox)
» Motor Operated (Rotork, Auma or others)
» Pneumatic Actuators
» Hydraulic Actuator
Functions
ESDV – LBV – SOV – BDV – SDV – MOV – MAN
