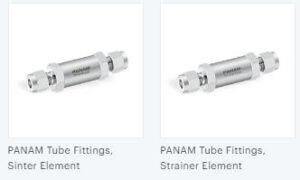

In-Line Filter

Brass
  • PANAM In-Line Filters are compact design for confine space.
  • Available in SS 316 & Brass Material.
  • Available in variety of end connections – Male & Female NPT, BSPP, BSPT & PANAM® tube fittings.
  • Maximum Working Pressure – 3,000 psi (207 bar).
  • Size ranging from 1/8” to ½” & 3mm OD to 12mm OD.
  • Nominal pore size of the replaceable sintered filter element: 0.5, 2, 7, 15, 40, 60, 90 microns.
  • Nominal pore size of the replaceable mesh filter element: 40, 90, 140, 230, 440 microns.
  • Working Temperature – -20 F to 900 F (-25 C to 482 C).
  • NACE certification available upon request.
  • Heat code traceability.

Continue reading In-Line Filter

Provider

Panam Engineers

Specifications

Body Material Brass , Stainless Steel
DN/NPS/NB(Metric) Min: 0.125 inch ( 6 mm )
Max: 0.5 inch ( 15 mm )
Temperature Min: -25 C ( -13 F )
Max: 482 C ( 900 F )
Pressure Min: 0 Bar ( 0 psi )
Max: 207 Bar ( 3,002 psi )
Design Standards NACE
Strainer/Filter Type Inline Filter , 180° Strainers/Filters
Country India

Key features/benefits

  • PANAM In-Line Filters are compact design for confine space.
  • Available in SS 316 & Brass Material.
  • Available in variety of end connections – Male & Female NPT, BSPP, BSPT & PANAM® tube fittings.
  • Maximum Working Pressure – 3,000 psi (207 bar).
  • Size ranging from 1/8” to ½” & 3mm OD to 12mm OD.
  • Nominal pore size of the replaceable sintered filter element: 0.5, 2, 7, 15, 40, 60, 90 microns.
  • Nominal pore size of the replaceable mesh filter element: 40, 90, 140, 230, 440 microns.
  • Working Temperature – -20 F to 900 F (-25 C to 482 C).
  • NACE certification available upon request.
  • Heat code traceability.
