Key features/benefits
Nominal Pressure: PN10-PN16
Nominal Diameter: DN40-DN600
Temperature: +80 °C
Flange Ends: DIN EN 1092 / TS 810
Dimensions: DIN 3202-F1, DIN EN 558-1-1

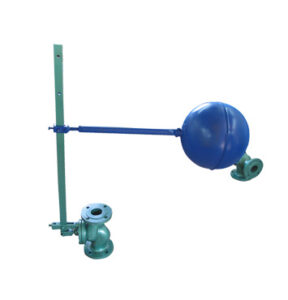

Float Valve PN10-16
Cast Iron
Water
Water Treatment
Nominal Pressure: PN10-PN16
Nominal Diameter: DN40-DN600
Temperature: +80 °C
Flange Ends: DIN EN 1092 / TS 810
Dimensions: DIN 3202-F1, DIN EN 558-1-1
Provider

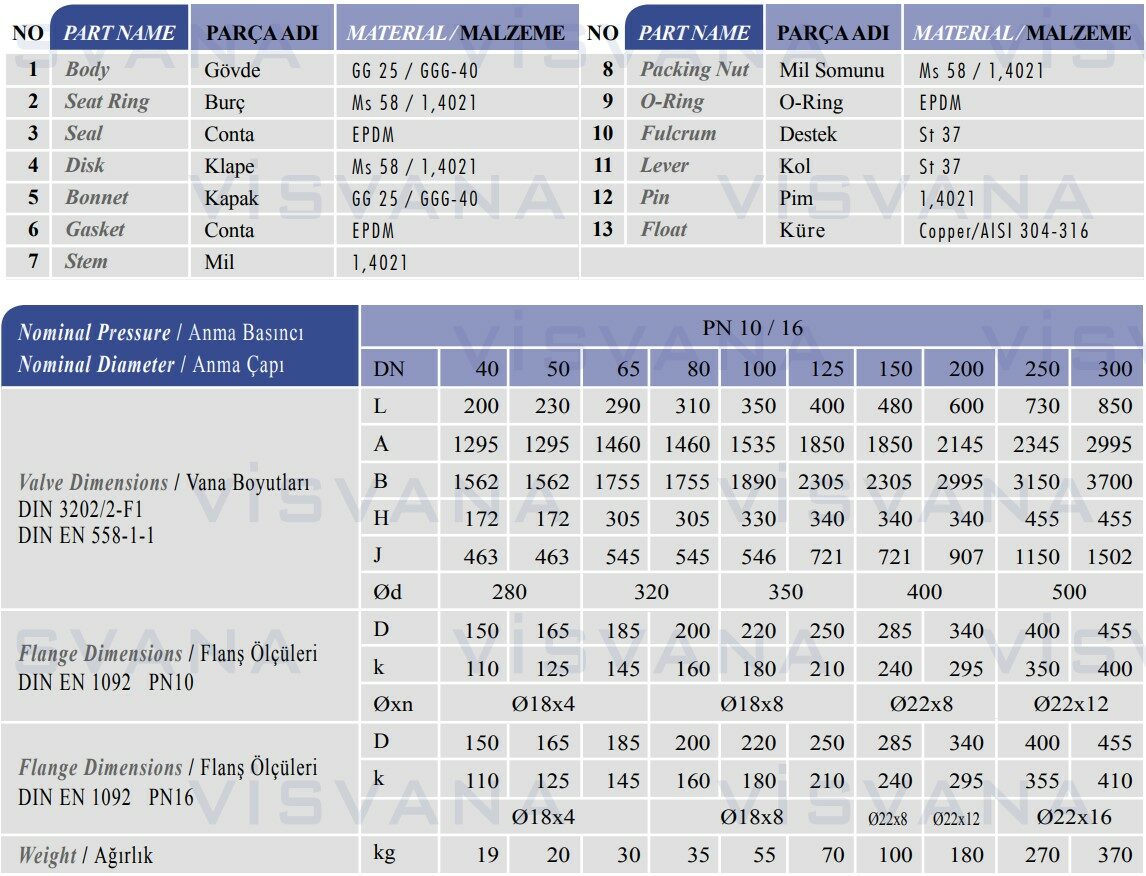

Specifications
| Body Material | Cast Iron |
| Design Standards | ASME , BS EN |
| ANSI / ASME Ratings | 150 , 300 |
| DN/NPS/NB(Metric) | Min: 1.5 inch ( 40 mm ) Max: 24 inch ( 600 mm ) |
| Country | Turkey |
| Type | Float Valves |
| Actuation Method | Manual |
| Pressure | Min: 0 Bar ( 0 psi ) Max: 16 Bar ( 232 psi ) |
| Temperature | Min: 0 C ( 32 F ) Max: 80 C ( 176 F ) |
| Media | Water |
| Applications | Water Treatment |
