Key features/benefits

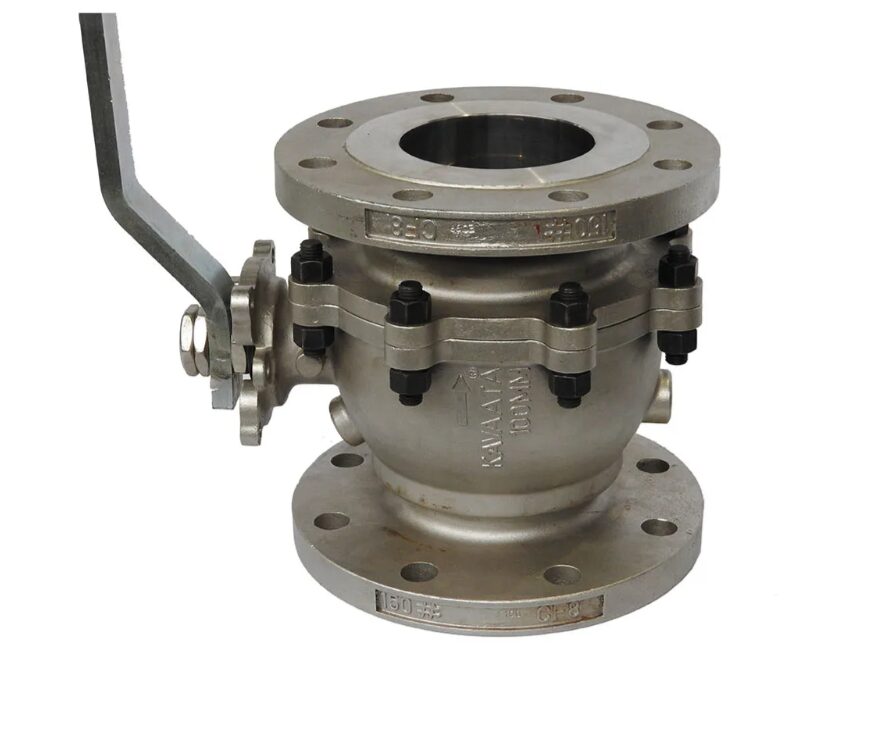

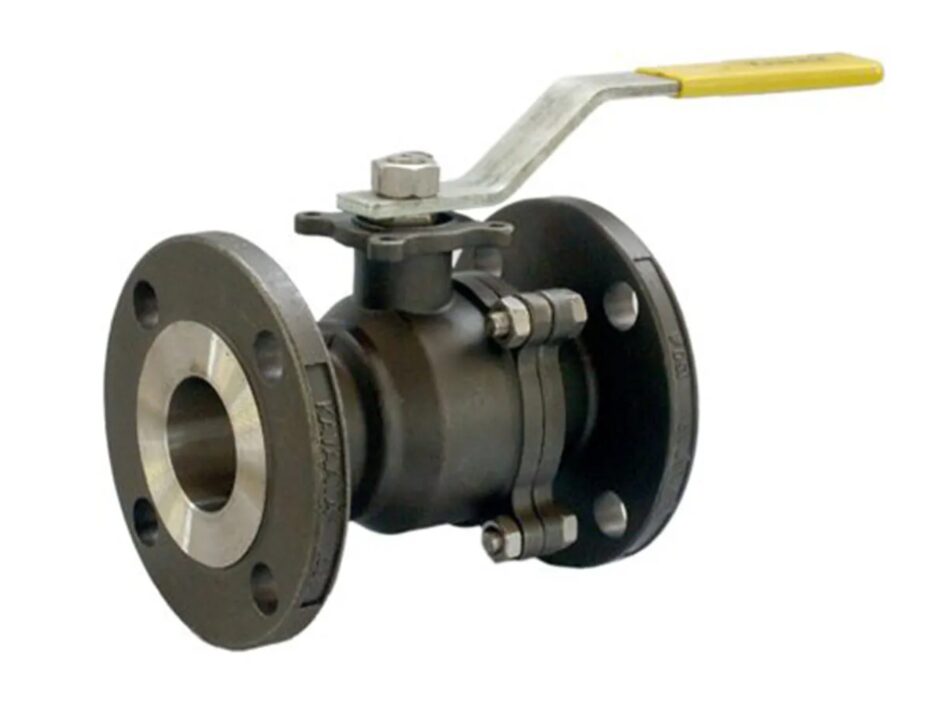

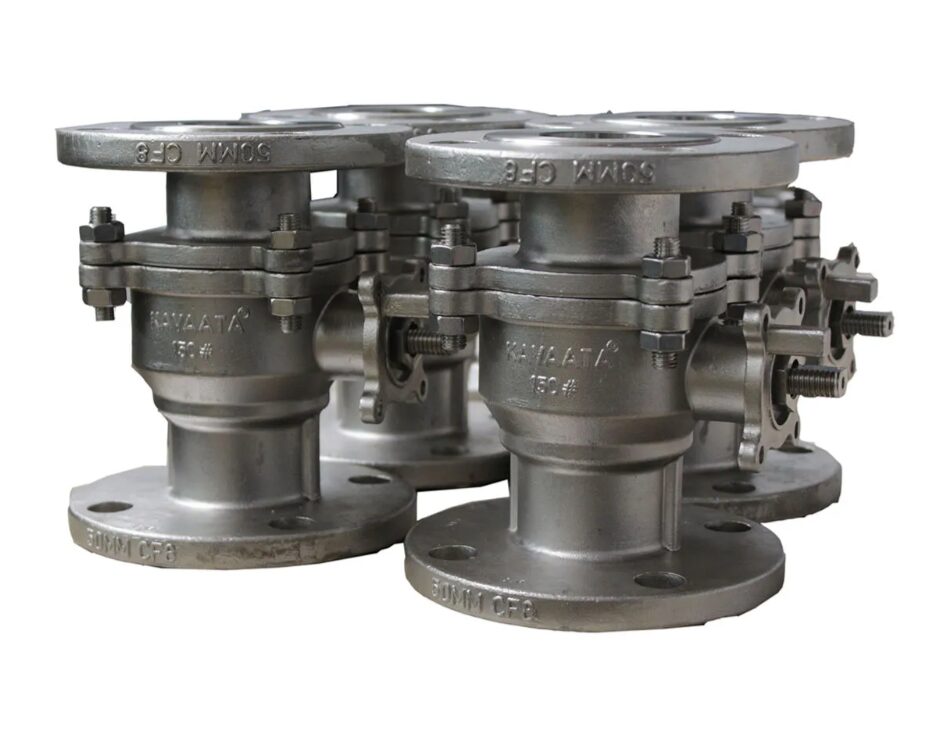

Flanged End 2 Piece design Ball Valves are economical & less prone to leakages. These valves are also known as Split Body design valves. These valves are by far most commonly used Ball Valves in the industry. These Ball Valves are available in ASA Class 150# & are tested as per Fire safe test standards such as API 607 VI edition / ISO 10497:2010.
Applicable Standards
Design standard: ISO17292/ API 6D
Testing standard: BS6755/ API598
Pressure-Temperature rating: ASME B-16.34
Flange Dimensions: ASME B-16.5
Face to Face: ASME B-16.10
Product Specification
Size: ½” to 8”
Class: 150#
Material: WCB, CF8M(SS316), CF8(SS304), Duplex SS, Inconel, Hastelloy
Port: Full Port
End connection: Flanged End
Operation: Manual/ Actuated
Features that Add value
Wide range of seat and seal material
Investment cast body
Full port
Mirror finished SS balls.
Floating Ball concept for positive shutoff.
Leak proof design.
Anti-static device on request.
Fire safe certified ball valve.
Fire safe design option
Advantages: Economically priced
